ZJ-type submersible slurry pump, NSQ-type submersible sand suction pump

The ZJQ and NSQ submersible slurry pumps and sand suction pumps are hydraulic machines where the motor and pump are coaxial and submerged in the medium. The pump's flow components are made of high-strength wear-resistant alloys, wear-resistant cast iron, and cast steel, with the material determined by the liquid discharged based on customer operations. The pump has a large flow passage and is suitable for transporting mud, ore pulp, coal slurry, sand and gravel, and other media containing relatively large solid particles. It can also be used for river dredging, sludge removal, fecal matter, slurry feed suction, irrigation, and sprinkling. It can also be used in municipal, chemical dyeing, pharmaceutical, shipbuilding, and food industries, as well as for suction of high-concentration viscous sewage and sludge, pasty substances, etc. It is an important piece of equipment that cannot be replaced by submersible sewage pumps.

Contact Information

Email:sales@abpumps.com

Mobile/WeChat:+8615188618168

Category:

slurry pump

Keywords:

Inquiry Now

Product Introduction and Description

The ZJQ and NSQ submersible slurry pumps/sand suction pumps are hydraulic machines where the motor and pump are coaxial and submerged in the medium. The pump's flow components are made of high-strength wear-resistant alloys, wear-resistant cast iron, and cast steel, etc. The material of the flow components is determined based on the liquid discharged by the customer's operation. The pump has a large flow passage and is suitable for conveying mud, ore pulp, coal slurry, sand and gravel, etc., containing relatively large solid particles. It can also be used for river dredging, sewage removal, manure, slurry feed suction, spraying, and can also be used in municipal, chemical dyeing, pharmaceutical, shipbuilding, food, etc., as well as for suction of high-concentration viscous liquid sludge, paste-like substances, etc. It is an important piece of equipment that cannot be replaced by submersible sewage pumps.

This series of products are designed and manufactured using advanced technologies from home and abroad. In addition to the main impeller, the pump also has a set of stirring impellers at the bottom, which can spray the deposited sludge into turbulence, allowing the pump to achieve high-concentration conveying without auxiliary devices. The unique sealing device can effectively balance the pressure inside and outside the oil chamber, maximizing the reliability of the mechanical seal. The motor uses various protection measures such as overheating protection and water ingress detection protection, and replaces the usability, reliability, and service life of various vertical pumps. It can operate safely and reliably under harsh working conditions for a long time.

Suitable for extracting construction sand, fine sand, silt, tailings pulp, ore sand, iron sand ore, rivers, lakes, reservoirs, ports, etc., for sand dredging and dredging projects. It can also be used for removing sediment from sedimentation tanks in steel plants, power plants, iron ore plants, oil fields, and other industrial and mining enterprises, as well as for wastewater treatment plant sediments, etc.

The company is engaged in the research and development and production of hydraulic sand dredging and dredging equipment, and provides experience in corresponding vertical and horizontal dredging sand pumps for different construction environments. It has now developed submersible slurry pumps and sand suction pumps. We always adhere to people-oriented, technological innovation, continuously improve internal management, improve product quality, and provide excellent and unique after-sales service and good corporate reputation to continuously meet customer requirements. Using our expertise to achieve your goals is our eternal pursuit!

Model Significance

80 ZJ Q 100-30-15

80--Diameter

ZJ--Slurry Pump

Q--Submersible

100--Flow Rate

30--Head

15--Power

100 NSQ100-20-15

100--Diameter

N--Mud

S--Sand

Q--Submersible

100--Flow Rate

20--Head

15--Power

Adaptable to all industries Anbang Pump Industry provides one-stop pumping solutions

No matter what industry you are in or what pumping challenges you face, Hebei Anbang Pump Industry can tailor the most suitable solution for you with its professional R&D team, rich product line and customized service capabilities, and become a solid backing for your business development with excellent products and intimate services.

Get a quote now ↓

Related Products

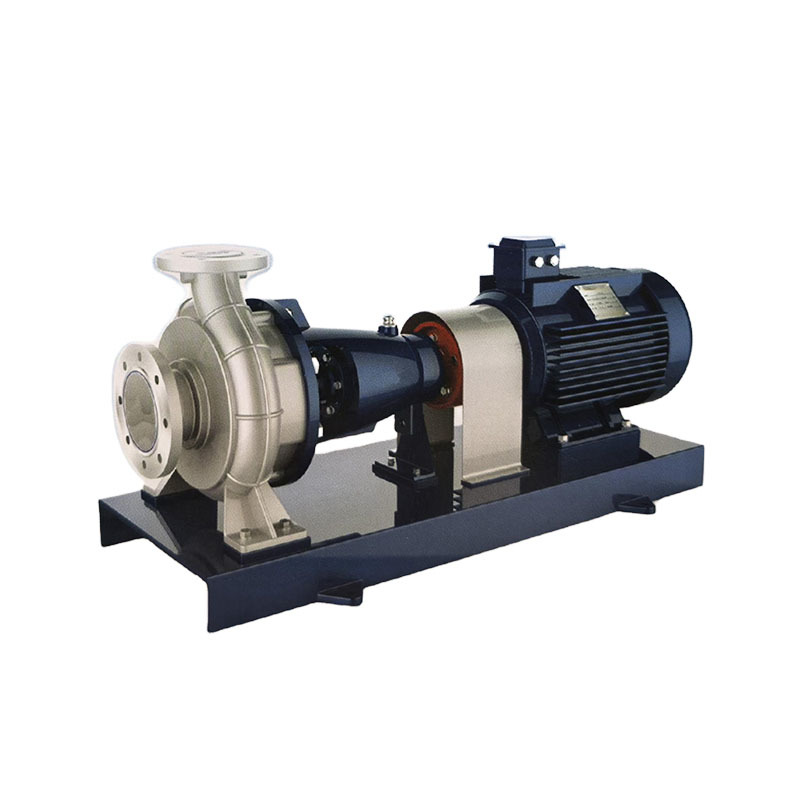

CZ type chemical pump

The CZ series standardized chemical pumps are horizontal, single-stage, single-suction centrifugal pumps; their dimensions and performance comply with DIN24256/ISO2858 standards. The performance range of the CZ series standardized chemical pumps includes all the performance of the IH series standardized chemical pumps, and its efficiency, cavitation performance and other indicators exceed those of the IH type pumps. It can be replaced with the IH type pump on a single-machine basis.

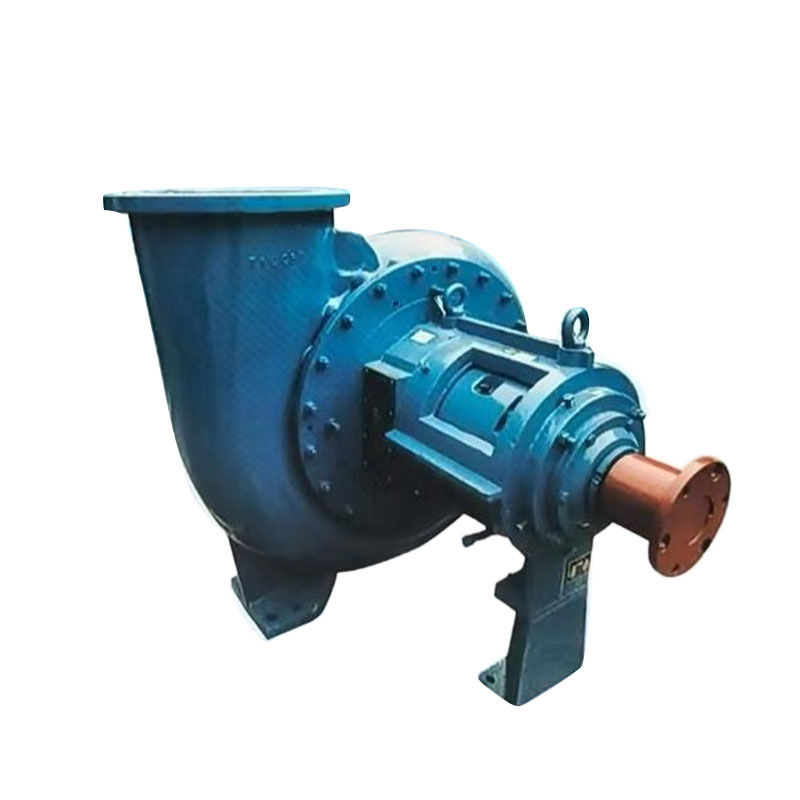

D, ZJD type single-shell slurry pump

The D(ZJD) series single-shell pump is suitable for transporting abrasive or corrosive slurries containing solid particles in industries such as power, metallurgy, coal, and building materials. The maximum slurry concentration of solid-liquid mixtures that it can transport is: 45% for ash slurry and coal slurry, and 60% for heavy media.

DT and TL desulfurization pumps

The DT and TL series desulfurization pumps are a new generation of high-efficiency desulfurization pumps, carefully developed by absorbing the advanced technologies of similar products at home and abroad, targeting the characteristics of pumps used in flue gas desulfurization. The maximum flow rate of the pump can reach 12000 m³/h, and the pump head is generally below 100 m, covering all operating conditions of pumps used in desulfurization systems. It can be used as a large slurry circulation pump for absorption towers, limestone slurry transport pump, gypsum slurry discharge pump, recovery pump, sump pump, etc.

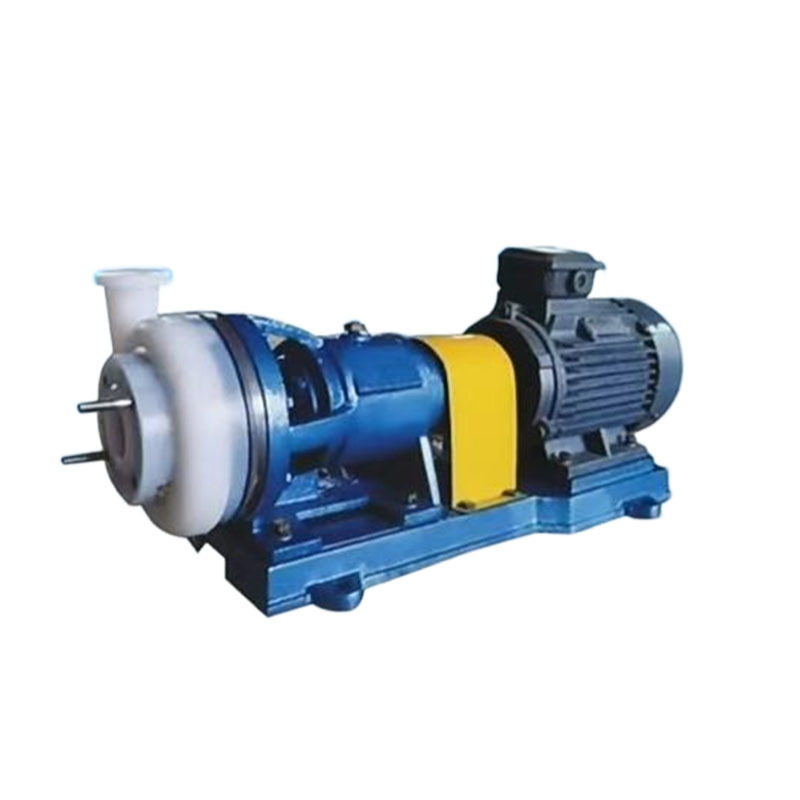

FSB and FSB-L type fluoroplastic alloy corrosion-resistant pumps

Our company mainly produces FSB and FSB-L type fluoroplastic alloy pumps, suitable for long-term conveying of strong oxidants and organic solvents with any concentration and without solid particles under the temperature condition of -30℃~160℃. The flow passage is entirely made of fluoroplastic alloy, featuring extremely strong corrosion resistance, high mechanical strength, no aging, and no toxic decomposition. Its service life is 3-4 times that of stainless steel pumps.
