YW submersible sewage pump

The Y-type submersible non-clogging sewage pump is rationally designed based on the WQ-type submersible sewage pump, according to user requirements and operating conditions, with different methods. Its hydraulic model is the same as the WQ-type pump. After being launched to the market, the product has been widely welcomed and praised by users for its unique efficacy and reliable quality.

Contact Information

Email:sales@abpumps.com

Mobile/WeChat:+8615188618168

Category:

Sewage pump

Keywords:

Inquiry Now

Product Features

1. The unique single-blade or double-blade impeller structure greatly improves the ability to pass through sewage, effectively passing through fibrous materials 5 times the pump port diameter and solid particles with a diameter of about 50% of the pump port diameter.
2. The mechanical seal uses a new type of hard and corrosion-resistant tungsten carbide material, and the seal is improved to a double-end face seal, so that it runs in the oil chamber for a long time, allowing the pump to run safely and continuously for more than 8000 hours.
3. The pump has a vertical structure. When working, the pump body is immersed in the liquid, so it is easy to start, there is no exhaust evacuation problem, and it has the characteristics of no leakage, and the submersion depth can reach 0.5~7 meters.
4. The overall structural design is reasonable, with low noise, significant energy saving, and convenient maintenance.
5. The shaft connection structure is advanced and reliable. The pump and motor are connected by a coupling. The pump shaft size is precise, ensuring stable operation of the pump, and leaving sufficient safety factor.
6. It can be used in the full head range, ensuring that the motor will not be overloaded.
7. According to user needs, a liquid level automatic control cabinet can be equipped to automatically control the start and stop of the pump according to the required liquid level changes, without the need for special personnel to supervise, making it convenient to use.

Main Uses

Suitable for chemical, petrochemical, pharmaceutical, mining, papermaking, cement plants, steel plants, power plants, coal processing plants, and urban sewage treatment plant drainage systems, municipal engineering, construction sites, etc., transporting sewage with particles, sewage, and can also be used for pumping clear water and corrosive media.

Operating Conditions

1. The medium temperature does not exceed 70℃, and the medium density is 1~1.3Kg/dm³. ³
2. The PH value of the medium used for cast iron material is in the range of 5~9.
3. 1Cr18Ni9Ti stainless steel material can be used for various corrosive media.
Note: If users have special requirements for temperature and medium, please specify the details of the conveying medium when ordering, so that our company can provide more reliable products.

Model Representation

100 YW 80-9

100--Outlet diameter 100mm

YW--Y represents "submersible", W represents "sewage"

80--Flow rate is 80m³/h ³/h

9--Head is 9m

Adaptable to all industries Anbang Pump Industry provides one-stop pumping solutions

No matter what industry you are in or what pumping challenges you face, Hebei Anbang Pump Industry can tailor the most suitable solution for you with its professional R&D team, rich product line and customized service capabilities, and become a solid backing for your business development with excellent products and intimate services.

Get a quote now ↓

Related Products

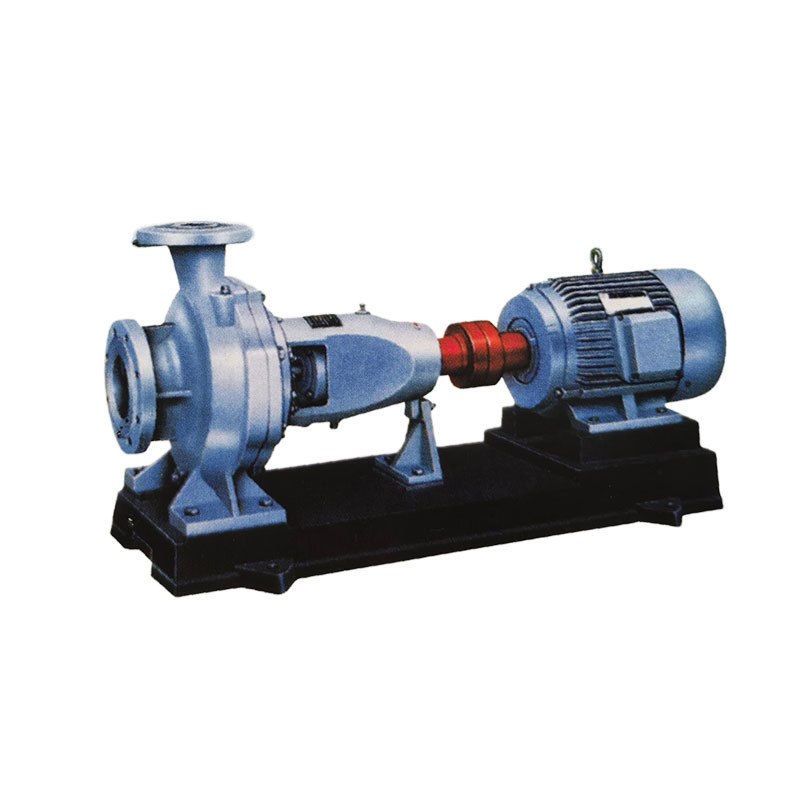

CZ type chemical pump

The CZ series standardized chemical pumps are horizontal, single-stage, single-suction centrifugal pumps; their dimensions and performance comply with DIN24256/ISO2858 standards. The performance range of the CZ series standardized chemical pumps includes all the performance of the IH series standardized chemical pumps, and its efficiency, cavitation performance and other indicators exceed those of the IH type pumps. It can be replaced with the IH type pump on a single-machine basis.

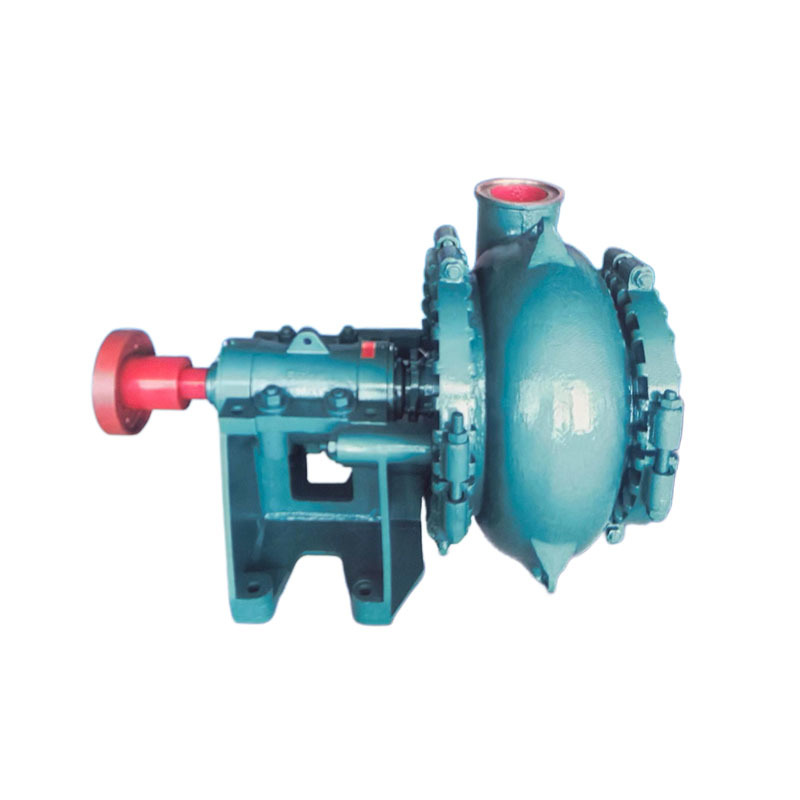

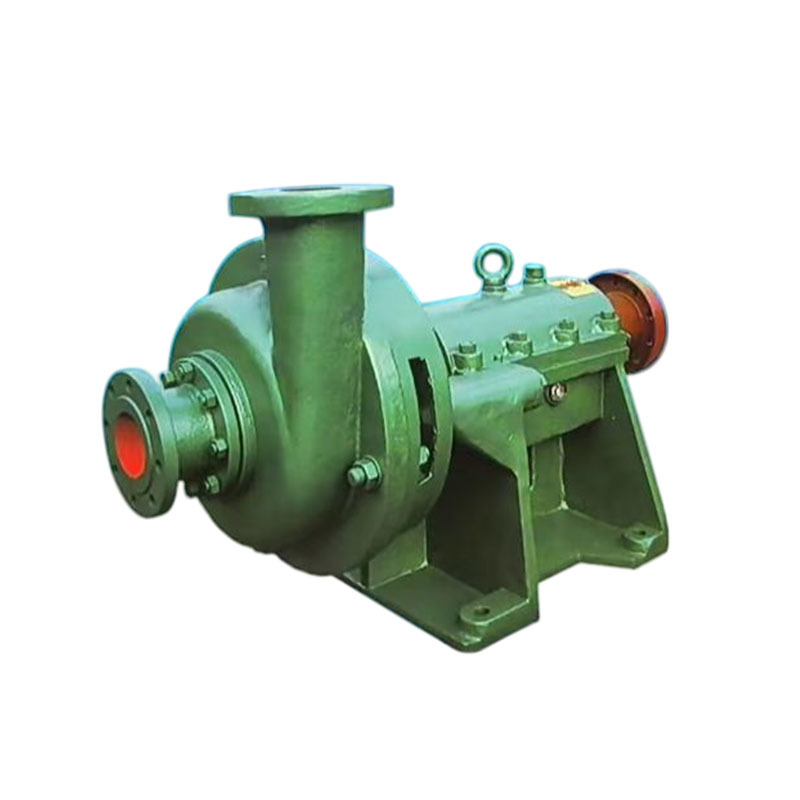

D, ZJD type single-shell slurry pump
